3.5 mm hotel bedside info panel
Interfaces 3.5mm · 86 mm · multi-color
Installation 86 mm / wall mount · clear labeling
Wiring Low-voltage cabinet star topology · label cross-check
Application Hotel guestroom · workstation · low-voltage cabinet
- Product
- hotel bedside info panel
- Series
- 3.5mm Audio Jack
- Features
- 3.5mm · 86 mm · multi-color
- Interfaces
- RS485 bus · Modbus RTU (model-dependent)
Specifications
| Parameter | Specification |
|---|---|
| Product name | hotel bedside info panel |
| Product series | Low-voltage info panel |
| Key features | 3.5mm · 86 mm · multi-color · Cat6/HDMI/telephone · 86 mm wall mount · multi-color options |
| Product overview | Hotel bedside info panel with low-voltage integration and one-touch service call; bedside info panel with USB/low-voltage integration for guestrooms. |
| Installation | 86 mm back box / standard wall / LV cabinet (model-dependent) |
| Communication method | RS485 bus · Modbus RTU (model-dependent) |
| Delivery | Bulk project supply · finish and load per BOM |
| Applications | Hotel guestroom · building public areas · bulk projects |
| Engineering sup port | Detailed design docs · project BOM · bulk supply coordination |
Wiring diagram

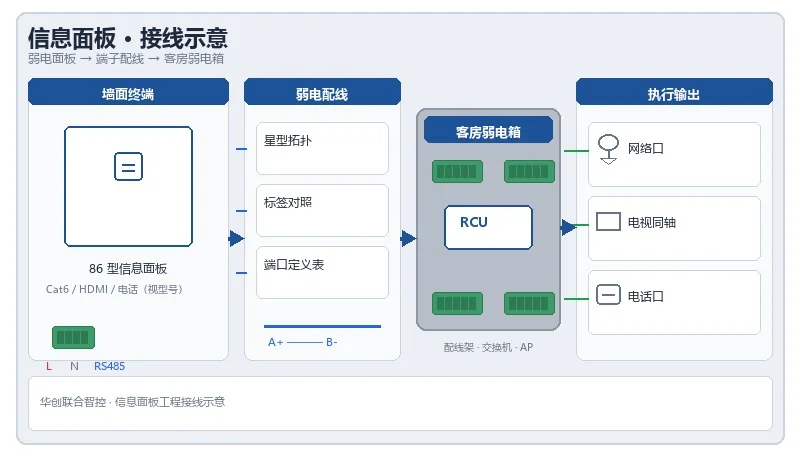

Info panel engineering wiring reference — low-voltage ports to guestroom LV cabinet; wire sequence per signed drawing set.
Installation notes
- Low-voltage port wire sequence must match guestroom LV construction drawings and label schedule
- Composite panels: verify each port definition per BOM
- Wire per project drawing; signed projects use factory shipment drawings
- Pre-handover test each port: continuity, wire sequence and label cross-check
Downloads
Full datasheets, wiring diagrams and certificates are in the download center, or contact sales for project BOM.
Recommended for you
Need 3.5 mm headphone audio info panel selection and low-voltage detailed design? Contact our team for port definition table, finish list and project BOM.
