Switch / relay
Main, downlight, bath multi ON/OFF;RCUcentral orsmart switchretrofit, one-key scenes.
Back to Solutions
Scene-linked lighting
Multi-circuit lighting scenes tied to card power, curtains and sensors.
- 20%+Guestroom lighting energy cut
(scene standby + card power) - 50%Public lighting savings
(schedule + PIR)* - 8+Standard guestroom scenes
Welcome · sleep · night path etc. - 3Main deployment routes
RCU · wireless · module
* Public savings vary by property and PIR policy—calibrate per floor in acceptance.
Four control modes · light by activity
Industry schemes split lighting intorelay switch, dimming, strip, smart lamp—PurePoint Smart hotel engineering maps to circuit BOM, not consumer SKU stacking.
Dimming
Bedside, entry 0–10V / triac; industry “night mode” → hotelnight-path soft light, manual or PIR low level.
Strip / ambience
Ceiling, mirror, minibar RGB / dual CCT; luxury meeting / reading with Welcome.
Schedule / sensing
Industry “schedule lighting” → check-in Welcome, 22:00 public dim, checkout standby; corridorPIR.
Residential lighting ~7% carbon footprint—hotel accounts viacard power + scene standby + public schedule; seeenergy saving.
Core guestroom scenes · four quadrants
Matchesguestroom hardware referenceguest quadrants—light from guest view, not circuit list only.
Automation stories · hotel B2B narrative
From international smart lighting four use cases—rewritten for hotel B2B delivery.
Schedule lighting · not always on
Residential: entry on return, corridor off after family sleeps. Hotel: Welcome on check-in, public 30% after 22:00, vacant security minimum.
- Bind PMS / card power room state—avoid vacant lights on
- Per-floor, per-zone schedule in RCU / platform
- Physical panel manual override—guest habit preserved

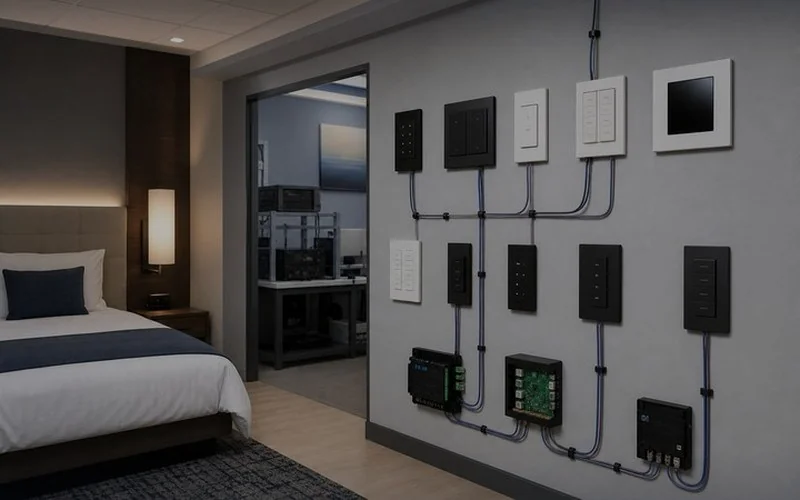

Night soft light · Night Mode
Dimming “night mode”: 22:00–06:00 any trigger low level. Hotelnight path: corridor + bath—not waking partner.
- Ceiling not in night path—path and bath only
- Return to bed delay restores sleep scene
- Matchesguestroom reference · night-path tab

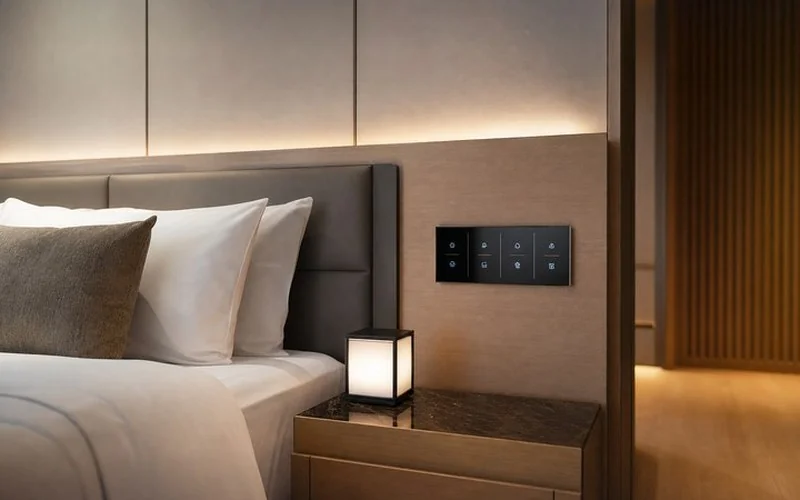

One-key · meeting / reading / all off
Industry “movie night” dim + shade. Hotel: bed foot / entry—Welcome, meeting, read, sleep, all off; checkout linked power off.
- Entry “all off” matches entry one-key off
- Scene templates—chain multi-property copy
- Optional voice / touch / mobile BYOD trigger

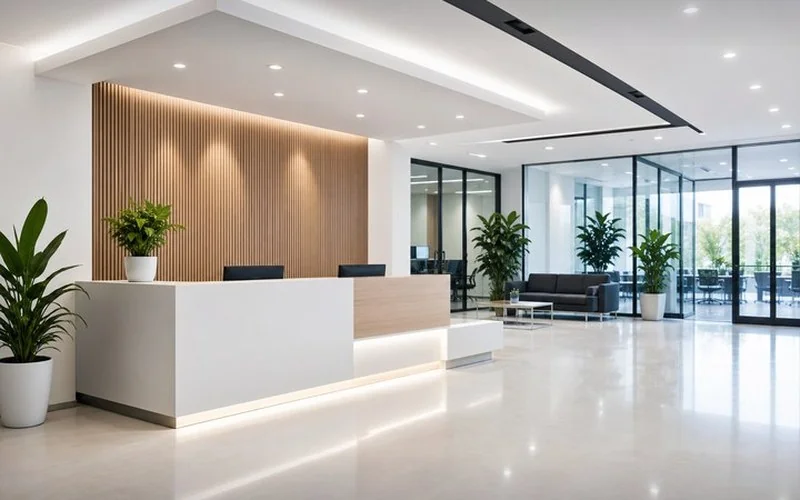

Public · sunset on / late-night dim
Residential: outdoor sunset on, 22:00 -30%, sunrise off. Hotel: lobby, parking, landscape inpublic back-of-house, weather / hours linked.
- Banquet / meeting “projection mode” one-key dim
- Corridor PIR + schedule dual strategy
- Sub-meter reports support green hotel retrofit
Typical solution scenes
Circuit design, panel selection, dimming and sensor linkage—BOM per point diagram.
Welcome · reading · meeting
Star-rated main, downlight, strip, reading circuits; scenes in RCU or panel—template copy.
- Main / corridor / bath / wardrobe mirror independent
- Meeting raises level; sleep keeps 0–1 night circuit
- Openshadesin Welcome

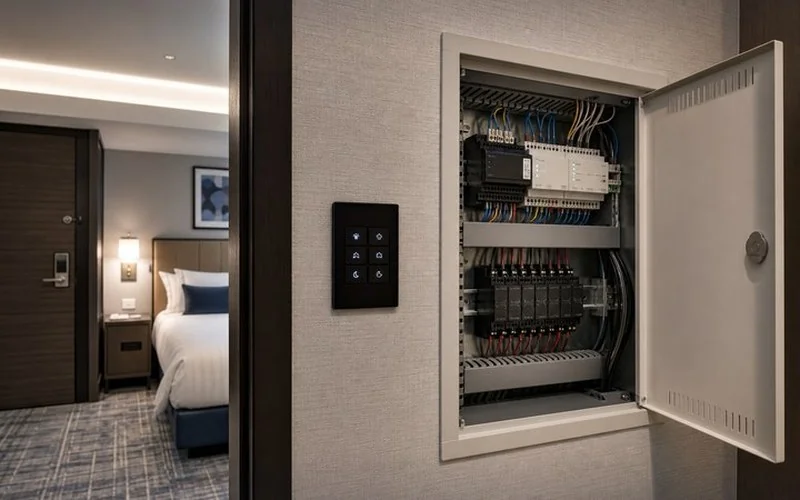

Circuit design · mains relay
RCU hostdrives multi relays; standard 6–12 lighting, suite expandable.
- Live-neutral / live-only switch with RCU dry contact
- Dimming circuits separate—avoid mixing with switches
- Factory pre-programmed—site mainly point verification
Dimming · panel · touch screen
Upscale: bed foot, entry, bathtouch panelor metal—0–10V / triac dimming per project.
- Scene keys: Welcome / sleep / night path / all off
- Luxury custom panel material and backlight
- Integrate DND / MUR onbedside info panel
Sensor linkage · public extension
Contact, PIR, lux trigger scenes or savings; corridor / bath vacant delay off.
- Card power + contact: unoccupied no sustained light
- Public PIR seepublic back-of-house
- Smart sensorsLocal RCU linkage, low latency
Three deployment routes
Matches guest control A/B/C routes—lighting subsystem follows RCU, wireless, or RS485 selection.
RCU centralized wired
Multi relay central control—fast, stable; upscale new andmulti dimmingpreferred.
Upscale · multi circuit
Wireless smart switch
Wireless module+ switch panel, minimal chase—boutique and existing rooms.
Retrofit · lightweight
Hybrid · public wired + guest wireless
Lobby / corridor central schedule, guest wireless fill-in; chain phased rollout.
Chain · phased
Public dedicated
Per-floor schedule, lux zones, banquet / meeting modes—quote separate from guestrooms.
Circuit type comparison
Before contract: which circuits dim vs switch only, RGB strip—avoid site add-ons.
| Comparison | Switch circuit | Dimming circuit | Strip / RGB |
|---|---|---|---|
| Typical location | Main, downlight, bath | Bedside, entry, ambience | Ceiling strip, bath mirror frame |
| Control method | Relay / smart switch | 0–10V, triac, DALI* | RGB module or dedicated driver |
| Scene value | ★★★★★ | ★★★★★ | ★★★☆☆ |
| Cost | Lower | Medium | Higher |
| Luxury project | Standard | Strongly recommended | Optional ambience |
* DALI / KNX bus dimming per project; PurePoint Smart mainline RCU + 0–10V / triac.
International lighting module mapping
Source: international lighting page (consumer DIY → PurePoint Smart hotel engineering).
| Industry module | PurePoint Smart hotel mapping | This page / site anchor |
|---|---|---|
| Lamp control · relay switch | RCU multi relay / smart switch retrofit | Smart switch· “Switch / relay” above |
| Dimming · dim + Night mode | Night-path soft light, bedside 0–10V | “Night soft light”·hotel night-path tab |
| LED strips · ambience RGB | Strip / mirror / luxury meeting | “Circuit comparison · strip RGB” |
| Schedule · follow schedule | Check-in Welcome / public 22:00 dim | “Schedule lighting”·public |
| Cinema scene · one-key scene | Welcome / meeting / sleep / all off | “One-key scenes”· bed foot / entry panel |
| Sunset outdoor · outdoor schedule | Lobby / parking / landscape path | “Public · sunset on”· public solution |
| Energy monitoring · 1PM series | Card power + sub-meter / vacant standby | Card power· energy-saving |
| App / Alexa / KNX compatible | PMS / cloud API and BYOD | Developer API· service-cloud |
Engineering integration notes
Point diagram
Each circuit number, panel key, scene table—deliver with low-voltage drawings.
Card power linkage
Card / keyless triggers Welcome; card out delay standby, cut non-essential.
Panel selection
Standard / Luxury series; beds, keys, dim channels matchtouch panelsize.
Acceptance standard
Per-scene lux and response; public schedule and PIR in acceptance list.
