06:00 / 11:30 / 18:00 / 22:00 boundaries and zone illuminance in technical deviation table.
Back to Solutions
Hospitality venues
Restaurants, clubs and venue lighting and scene control references.
Engineering Reference · Hospitality Venues
Four daypart lighting scenes—preset in panels and modules, not ops back office
Hospitality venue engineering focuses onprep → lunch → dinner → closelighting scene switching and private-room / bar independent circuits. PurePoint Smart deliversscene panels, relays, and dimming modules; kitchen exhaust ventilation is professional HVAC; multi-store BOM cloning atChain reference.
Smart switches·Relay/dimming modules·Scene lighting·Public-area schedule·Product catalog
- 4 daypartsDaily scenes
prep to close - 3 moodsLunch/dinner/bar
ambience - ZonesMain hall private rooms
kitchen independent - ChainMulti-store BOM
unified panels
* Four daypart schedules and scene semantics written to local RCU; chain projects should bind BOM version and panel silkscreen.
Zoned hardware · BOM comparison
Hospitality venues usemain hall / private room / kitchen / barzones—not guestroom six-point BOM. Conventional engineering combos below; SKUs in product catalog.
| Zone | Core hardware | Four dayparts link | Capability / product |
|---|---|---|---|
| Main hall | Scene panel + relay + dimming | Lunch bright / dinner warm / close cleaning | Scene lighting·Smart switches |
| Private room | Independent scene keys · curtains (optional) | Banquet / business / vacate reset | Multi-key panels·Curtains |
| Kitchen | Three-key panel + relay | Operation / cleaning / standby | Relay modules |
| Bar | Independent circuit · low-level dimming | Isolated from main hall—prevent whole-venue dim by mistake | Dimming modules |
Bid preparation · three recommendations
Hospitality bids should specify schedules and acceptance illuminance—not device counts alone.
Private rooms, bar must not false-link with main hall; kitchen isolated from front-of-house.
Panel silkscreen and scene semantics ship with v2.x BOM—new stores accept per checklist.
Four dayparts (click to switch)
Prep daypart · scene output
- Main hallBaseline 60%, decorative OFF
- KitchenOperation full 100%, exhaust linkage (optional)
- Private roomStandby low, booking preset available
- HVACPre-cool / pre-heat, non-FOH zones capped
Lunch daypart · scene output
- Main hallHigh-CRI 100%, even illuminance
- Private roomBanquet / business scene keys ready
- KitchenOperation full, independent from main hall
- Acceptance11:30 boundary illuminance change measurable
Dinner daypart · scene output
- Main hallMain 50–70%, decorative / table light boost
- BarLow-level independent circuit—prevent whole-venue dim
- Private roomWarm scene, vacate reset delay
- LinkageDimming curve in RCU schedule
Close daypart · scene output
- Main hallCleaning 80%, decorative OFF
- KitchenCleaning scene, worktop accent
- CutoffNon-essential circuits delayed 5–15 min off
- ChainFour daypart schedule consistent chain-wide BOM
Ambience lighting · three moods (Loxone-style)
Same space, different color temperature and illuminance layers by daypart—click "Lunch / Dinner / Close" above to highlight matching mood.
Lunch · bright
High CRI, even illuminance—fast casual and business lunch
Dinner · warm
Main down, decorative and table light accent
Bar · low level
Bar accent light, independent from main hall—prevent whole-venue dim

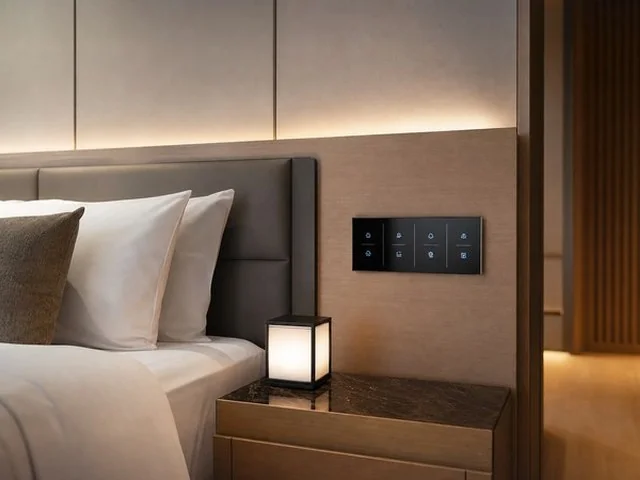

Front-line use · scene panels
- Main hallLunch / dinner / cleaning
- Private roomBanquet / business / vacate reset
- KitchenOperation / cleaning / standby (exhaust linkage optional)
- ChainUnified panel style and BOM across stores →Chain BOM reference
Kitchen ventilation · scope boundary
Grease exhaust is professional HVAC; PurePoint Smart delivers kitchen lighting zones, close linkage, and visible energy—detailed ventilation from integrator or HVAC partner documentation.
Acceptance checklist
Four daypart switch
Simulate 06:00 / 11:30 / 18:00 / 22:00 boundaries—measure main hall and private room illuminance change.
Private room independent
Banquet scene must not dim entire main hall; vacate reset delay correct.
Kitchen zoned
Operation/cleaning/standby three keys; non-essential circuits off after close.
Chain consistency
Panel silkscreen and scene semantics match contract BOM version.
Engineering reference (7 topics)
Extended segments · capability map
