Motorized Shading Control

Curtain motors and hotel smart curtain panels on RS485 or wireless buses.

  • 15–25%Summer HVAC load reducible
    (blackout + away close)
  • 2 chSheer + blackout standard room
    (dual-channel module)
  • 4Core scene keys
    Welcome · sleep · away · all off
  • 3Deployment routes
    wired RS485· wireless · dual

* Savings vary by orientation, glazing, HVAC; calibrate per mock-up in acceptance.

Guestroom motorized shading Welcome scene

Standard room per-room BOM · 6-point template

Mainstream guestroom point structure (wired/wirelesssame list, RCU network and module model differ). PurePoint Smart delivers hardware and wiring; PMS, room state, mini-program byintegrator software—not RCU bundled.

#Per-room pointEngineering notesPurePoint Smart model / subsystem
1Door contact · doorbellBell, clean/DND dry contacts; contact linkage for power and away logicDoor sign and card power·Sensors
2Entry triple panelCard power, clean/DND, corridor / bath / exhaust / masterCard power·Scene panel
3ThermostatFCU / VRF panel; Welcome / away standby presetEnvironmental control·Thermostat panel
4Left · right bedside panelOutlets + USB + Type-C;shade / sheer open ·close ·stop; bright / sleep / soft / read scene keysBedside scene panel·Dual shade module·Tube motor
5Desk triple panelDesk light, outlet, outlet + USB + Type-CInfo panel·Lighting panel
6RCU hostLocal scene engine; shade / light / HVAC / power linkage in host or moduleRCU catalog·Protocol integration

Focus · item 4 shading:bedside keys todual shade module(or RCU relays) driving blackout + sheer tube motors; Welcome/sleep/away in RCU synced with item 2 power and item 3 HVAC. Keyless retrofit may add contact +keyless module.→ hotel master 6-point BOM

Guestroom shade scenes · four actions

Aligns withguestroom hardware referencescene table—organize by guest perception, not motor count.

Dual-track preview:Blackout 30%· sheer open

Linkage: lighting ramp · FCU preset · card power on

Scene linkage table · RCU presets (engineering reference)

Standard room mapping in RCU/panel locally; PMS may trigger Welcome/away via integrator software.

Scene keyBlackoutSheerLinked subsystems
WelcomeHalf open / stop 30%OpenLighting ramp · FCU preset ·card poweron
SleepFull closeFull close or 10% ventMain off · night light kept
Night pathHold sleep position—Path lighting low level (seelighting)
Meeting / readingStop 50%ClosedMain 80%· shade not blocking view
Away / checkoutFull closeFull closeNon-essential cut · clean state optional half open
All off / privacyFull closeFull closeOne-key privacy · DND may share key

Typical engineering configurations

Motor selection, dual wiring, retrofit routes—formal project per point diagram and BOM revision.

Dual sheer and blackout motors

Dual motor · sheer + blackout

Upscale standard: two tube motors for sheer and blackout viadual shade moduleor two RCU relays.

  • Welcome: sheer before blackout—avoid depressing full close
  • Stop percentage in RCU scene table
  • Suite may add third channel (living / bedroom zone)
Dual shade module →
Tube motor track and RS485 module

Tube motor · track and power

New build: curtain box 220V, control cable (RVV/RVSP) and RS485 in same or separate raceways.

  • Motor torque by width/weight—seemotor catalog
  • Module address and DI/DO terminal table with BOM
  • Venetian/Shangri-La optional 0–10V angle module
Shade motor products →
Wireless shade retrofit module

Retrofit · wireless shade module

Minimal wiring: battery or local power tube motor +wireless shade modulevia gateway to RCU scenes.

  • Suited to boutique, add-on later
  • Aligns withserviced apartmentB/C routes
  • Scenes still unified on RCU/panel—no separate shade app
Panel scenes →

Three deployment routes

Same scene semantics—pick motors/modules by new/retrofit/luxury zones; full routes:guestroom hardware reference.

A

RS485 wired · standard room

RCU +shade module/ dual-channel module, bus addressing planned; new upscale and chain rollout.

New build · repeatable rollout

B

Wireless retrofit · module + gateway

Wireless actuators + edge gateway; scenes with wired RCU same net or sub-panel; short schedule for retrofit.

Boutique retrofit

C

Suite multi-zone · multi motor

Living/bed/bath shade groups; luxury floor-to-ceiling multi-stop—seeluxury solutionlight moments.

Suite · floor-to-ceiling

Motor and module selection comparison

ComparisonA· RS485 wiredB· wireless retrofitC· suite multi-channel
Property typeNew chain / upscaleBoutique / retrofitSuite / presidential
Wiring effortMedium (control cable reserve)LowHigh (multi-zone)
Dual sheer+blackout★★★★★★★★★☆★★★★★
Scenes offline-capable★★★★★★★★★☆★★★★★
Maintenance sparesUnified module codingBattery/motor registryPer-zone BOM
Recommended modelssmart-module-curtain-dualsmart-module-wireless-curtainMulti-channel module + high-torque motor

Hardware topology reference

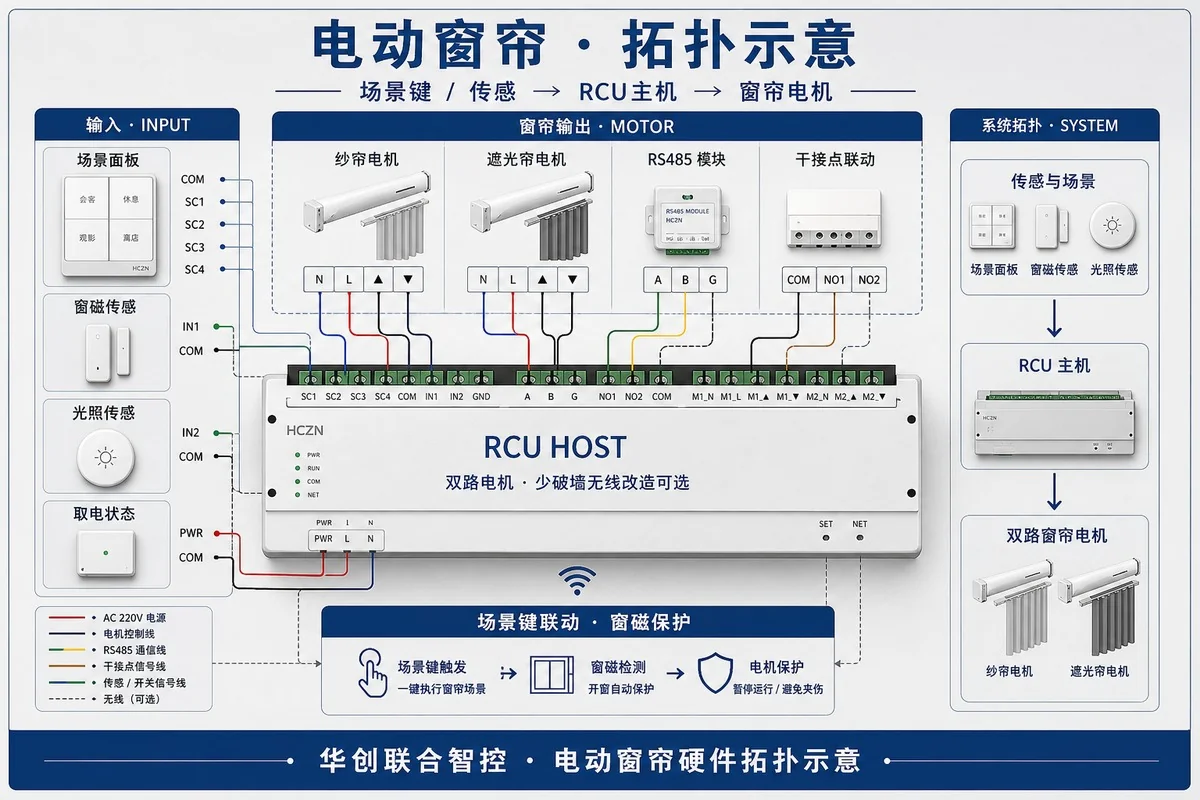

Motorized shade RCU and motor topology
Scene panel / RCU local logic → shade module drives blackout, sheer, venetian; linkage with light, HVAC, power in RCU scene table. Cite diagram +engineering docsper-room wiring.

Engineering integration notes

Curtain box mains

220V to curtain box; motor load and breaker count; coordinate with ceiling trade.

Control cable / bus

RVV to motor; RS485 with RCU riser or room panel; one address sheet per room.

Lighting coordination

Welcome/sleep same key; night path does not auto-open shade.

Acceptance test

Per-scene stop, limit, manual pull; dual-channel interlock sign-off.
