Hotel smart modules
BACnet gateway module
Relay, DI/DO and expansion modules for RS485 and wireless guestroom buses.
BACnet gateway module
BACnet gateway module — BACnet gateway module for HVAC BMS integration. BACnet gateway linking HVAC BMS and RCU; common protocol node for North America and commercial building integration.
- BACnet gateway module
- HVAC BMS link
- Commercial building
- North America integration
BACnet BACnet MS/TP gateway
RS485 bus Modbus RTU · with RCU networking
Installation DIN rail / low-voltage cabinet
Load confirm model selection per project
Application hotel guestroom · building public areas · centralized control
- Product
- BACnet gateway module
- Series
- BACnet
- Features
- BACnet · gateway · RS485
- Interfaces
- RS485 bus · Modbus RTU (model-dependent)
Specifications
| Parameter | Specification |
|---|---|
| Product name | BACnet gateway module |
| Product series | Protocol gateway module |
| Key features | BACnet · gateway · RS485· Modbus/KNX/BACnet · protocol bridge · RS485 bus |
| Product overview | BACnet gateway module — BACnet gateway module for HVAC BMS integration. RS485 bus actuator, DIN-rail mount, pairs with hotel RCU host. |
| Installation | 86 mm back box / standard wall / LV cabinet (model-dependent) |
| Communication method | RS485 bus · Modbus RTU (model-dependent) |
| Delivery | Bulk project supply · finish and load per BOM |
| Applications | Hotel guestroom · building public areas · bulk projects |
| Engineering sup port | Detailed design docs · project BOM · bulk supply coordination |

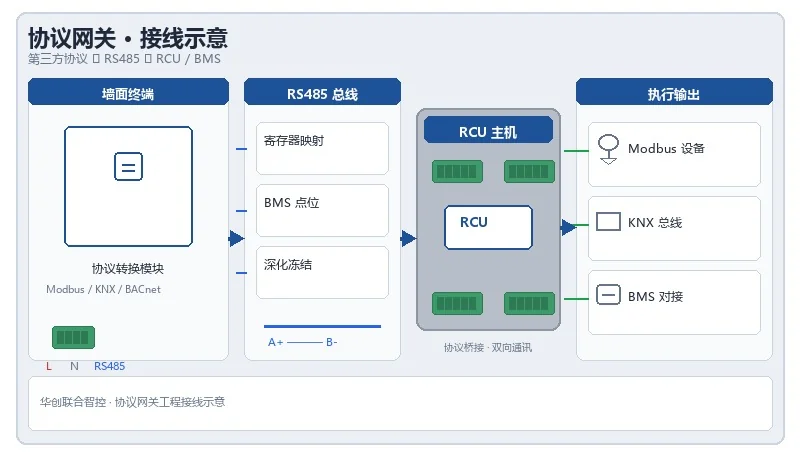

Wiring diagram
Protocol gateway module engineering wiring reference — Modbus/KNX/BACnet to RS485 conversion. Per signed drawing set.
Installation notes
- module address must be at detailed design phase with RCU circuit schedule, scene schedule planned together
- DIN rail/low-voltage cabinet installation must reserved cooling space, terminals torque per factory specification
- Wire per project drawing; signed projects use factory shipment drawings
- after power-on with RCU commissioning: output actions, bus communication, scene linkage item-by-item acceptance
- Protocol mapping table must sync with BMS point schedule during detailed design
Downloads
Full datasheets, wiring diagrams and certificates are in the download center, or contact sales for project BOM.
Recommended for you
Need BACnet MS/TP gateway selection and protocol mapping? Contact the team for protocol manual, point mapping table and integration reference.
