Ceiling PIR occupancy sensor
IR, presence, door and environmental sensors for guestroom automation.
Ceiling PIR occupancy sensor
Ceiling PIR occupancy sensor — Ceiling PIR occupancy sensor reporting to RCU via RS485. Ceiling PIR occupancy sensor for vacancy power-down and energy scenes; link from security-sensors scenario selection.
- Ceiling PIR sensor
- Occupancy detection
- Vacancy energy saving
- RS485 status reporting
Infrared Passive infrared · ceiling disc
Communication RS485 · Modbus RTU
Power supply DC 12–24V wide voltage
Installation ceiling surface mount
Application Corridor · lobby · warehouse
- Product
- hotel smart sensor
- Use category
- RS485 bus
- Features
- passive infrared · RS485· ceiling disc
- Interfaces
- RS485 bus · Modbus RTU
Specifications
| Parameter | Specification |
|---|---|
| Product name | hotel smart sensor |
| Product series | Smart sensors |
| Key features | passive infrared · RS485· ceiling disc |
| Product overview | hotel smart sensor, door contactstatus, card-insert power linkage. RS485 sensordevice, guestroomstatus input with scene linkage. |
| Installation | Ceiling mount; recommended installation height 2.5–6 m |
| Communication method | RS485 bus · Modbus RTU |
| Delivery | Bulk project supply · finish and load per BOM |
| Applications | Hotel corridor · lobby · factory warehouse · mall public areas |
| Engineering sup port | Detailed design docs · project BOM · bulk supply coordination |

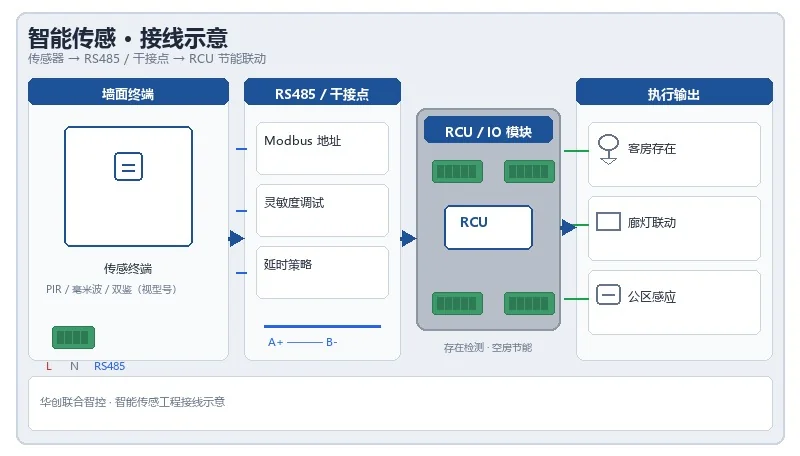

Wiring diagram
Sensor engineering wiring reference — RS485/dry contact to RCU or modules; terminals per signed drawing set.
Installation notes
- Keep lens unobstructed; stay clear of HVAC outlets and heat sources
- Presence sensors require confirmed mounting height and coverage
- Wire per project drawing; signed projects use factory shipment drawings
- After power-on commissioning: trigger distance, linkage logic and energy strategy acceptance
Downloads
Full datasheets, wiring diagrams and certificates are in the download center, or contact sales for project BOM.
