Curtain motor control switch panel
Curtain motor control switch panel — Curtain open, stop and close with RS485 motor scenes. Curtain open/stop/close scene panel on RS485 motors; spec with smart-curtain motors in guestroom BOM.
- Curtain scene keys
- Open, stop, close
- RS485 motor linkage
- Pairs with curtain motors
86 mm back box Standard wall mount, compatible with project back boxes
RS485 bus with RCU host, smart module networking
Glass touch Tempered glass panel with backlight status indication
3 finish options A / B / C
curtain control curtain open set control, with RCU scene linkage
- Installation
- Hotel room smart control panel
- Panel
- Tempered glass touch
- Communication
- RS485 bus
- Function
- curtain control
- Indication
- Backlight status
- Finish
- 3 options
- Delivery
- Bulk project supply
- Series
- curtain switch series
Specifications
| Parameter | Specification |
|---|---|
| Product name | Hotel room smart control panel |
| Installation | 86 mm back box |
| Panel material | Tempered glass touch |
| Main function | Hotel room smart control panel — Curtain open, stop and close with RS485 motor scenes. Tempered glass touch, RS485 bus, pairs with hotel RCU host. |
| Communication method | RS485 bus |
| Status indication | Backlight status |
| Optional finishes | A / B / C (see gallery above) |
| Product series | curtain switch series |
| Delivery | Bulk project supply |

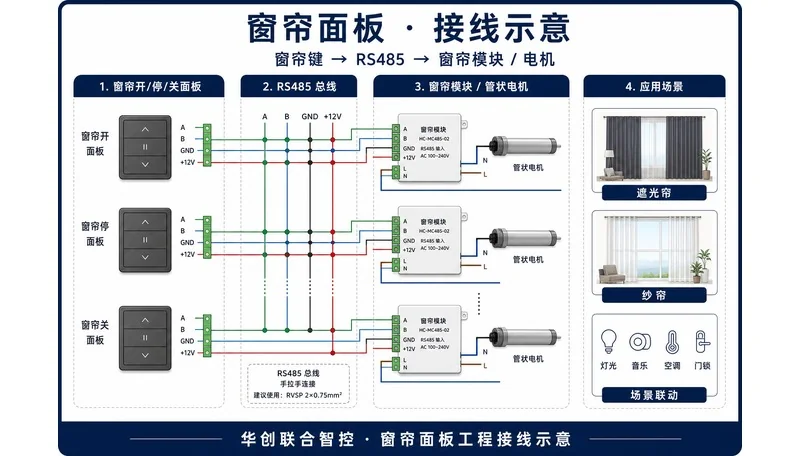

Wiring diagram
curtain panel category general-purpose wiring reference — specific terminals wire gauge per signed version wiring atlas as reference.
Installation notes
- curtain open/stop/close must be at RCU in with motor module or relay circuit mapping
- recommend reserved manual override logic, for easy maintenance with emergency
- Wire per project drawing; signed projects use factory shipment drawings
- after power-on with RCU commissioning: panel button, limit with scene linkage item-by-item acceptance
Downloads
Full spec sheets, wiring diagrams and certificates are in the download center, or contact sales for project BOM.
