Hotel smart switch panels for guestroom lighting, scene keys and glass touch on RS485 — OEM/ODM Guangzhou since 1996.
LCD scene panel hotel room
LCD scene panel hotel room — LCD scene display; welcome and sleep presets via RCU. LCD scene key with visible welcome/sleep states; suited to upscale rooms and OEM icon silk-screen.
- LCD scene state display
- Welcome and sleep one-tap
- Glass touch panel
- OEM icon silk-screen
86 mm back box Standard wall mount, compatible with project back boxes
RS485 bus with RCU host, smart module networking
LCD display LCD display with visual scene control
1 finish options A
Scene control LCD display with visual scene control and status feedback
- Installation
- Hotel room smart control panel
- Panel
- LCD display
- Communication
- RS485 bus
- display
- LCD visualization
- Indication
- status feedback
- Finish
- 1 options available
- Delivery
- Bulk project supply
- Series
- 1K–8K/LCD series
Specifications
| Parameter | Specification |
|---|---|
| Product name | Hotel room smart control panel |
| Installation | 86 mm back box |
| Panel material | LCD display |
| Communication method | Hotel room smart control panel — LCD scene display; welcome and sleep presets via RCU. Tempered glass touch, RS485 bus, pairs with hotel RCU host. |
| Status indication | status feedback |
| Optional finishes | A (see gallery above) |
| Product series | 1K–8K/LCD series |
| Delivery | Bulk project supply |
| Applications | Hotel guestroom · building public areas · bulk projects |

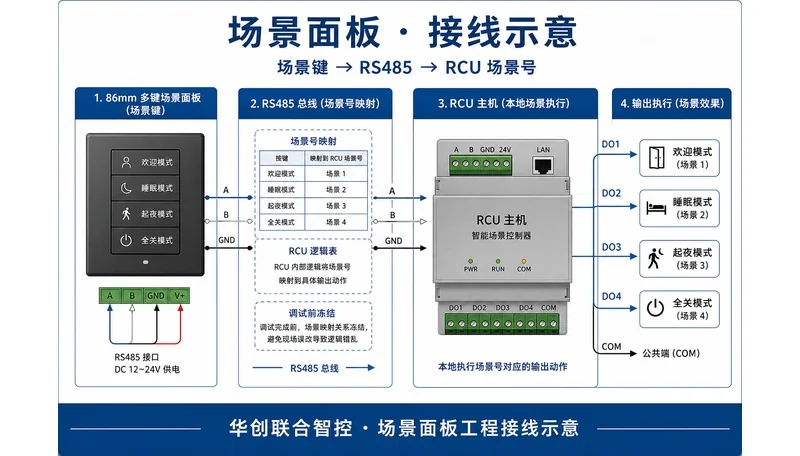

Wiring diagram
scene panel category general-purpose wiring reference — specific terminals wire gauge per signed version wiring atlas as reference.
Installation notes
- scene ID with buttonmapping must be at RCU program inpreset, detailed design phase confirm scene schedule
- button silkscreen or label recommend with construction drawings delivery, for easy acceptance cross-check
- Wire per project drawing; signed projects use factory shipment drawings
- after power-on with RCU commissioning: each button scene trigger, backlight indication item-by-item acceptance
Downloads
Full spec sheets, wiring diagrams and certificates are in the download center, or contact sales for project BOM.
Recommended for you
requires LCD scene switch selection and scene planning? Contact the team for scene table template, project BOM and standard room detailed design reference.
