IR emitter module

Relay, DI/DO and expansion modules for RS485 and wireless guestroom buses.

IR emitter module

IR emitter module — Dual IR emitter for TV and HVAC control via RCU. Dual IR emitter module for TV and HVAC control; in-room entertainment and climate actuator paired with RCU.

RS485
Infrared

Dual IR emitter
TV and HVAC control
RCU actuator
In-room entertainment

RS485 IR emitter module

RS485 bus Modbus RTU · with RCU networking

Installation DIN rail / low-voltage cabinet

Load confirm model selection per project

Application hotel guestroom · building public areas · centralized control

Product: IR emitter module
Series: Infrared
Features: RS485· infrared
Interfaces: RS485 bus · Modbus RTU (model-dependent)

Specifications

Parameter	Specification
Product name	IR emitter module
Product series	smart module accessory
Key features	RS485· infrared · bus terminals · centralized power supply · IR blaster · engineering accessory
Product overview	IR emitter module — Dual IR emitter for TV and HVAC control via RCU. RS485 bus actuator, DIN-rail mount, pairs with hotel RCU host.
Installation	86 mm back box / standard wall / LV cabinet (model-dependent)
Communication method	RS485 bus · Modbus RTU (model-dependent)
Delivery	Bulk project supply · finish and load per BOM
Applications	Hotel guestroom · building public areas · bulk projects
Engineering sup port	Detailed design docs · project BOM · bulk supply coordination

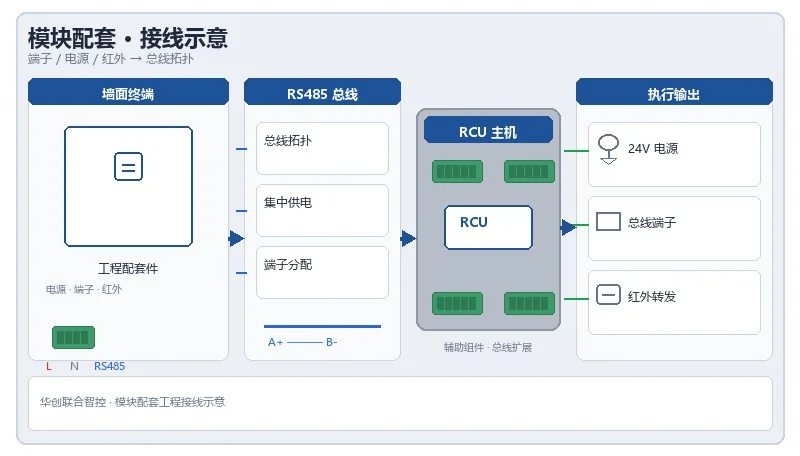

Wiring diagram

Accessory module engineering wiring reference — terminals, power supply, IR and auxiliary components. Per signed drawing set.

Installation notes

module address must be at detailed design phase with RCU circuit schedule, scene schedule planned together
DIN rail/low-voltage cabinet installation must reserved cooling space, terminals torque per factory specification
Wire per project drawing; signed projects use factory shipment drawings
after power-on with RCU commissioning: output actions, bus communication, scene linkage item-by-item acceptance
