Hotel smart switch panels
Combined lighting and scene keys panel
Hotel smart switch panels for guestroom lighting, scene keys and glass touch on RS485 — OEM/ODM Guangzhou since 1996.
Drag to switch
Combined lighting and scene keys panel
Combined lighting and scene keys panel — Combined lighting and scene keys; OEM layout for hotel projects.This page lists finish options; specify the finish code when ordering. Combined lighting and scene keys on one panel for project customization; OEM key layout and silk-screen.
- Lighting plus scene keys
- Multi-control one plate
- OEM key layout
- Project customization
86 mm back box Standard wall mount, compatible with project back boxes
RS485 bus with RCU host, smart module networking
Glass touch Tempered glass panel with backlight status indication
7 finish options A / B / C / D / E / F / G
combined control multi-function composite, flexible configuration
- Installation
- Hotel room smart control panel
- Panel
- Tempered glass touch
- Communication
- RS485 bus
- Function
- combined control
- Indication
- Backlight status
- Finish
- 7 options available
- Delivery
- Bulk project supply
- Series
- composite switch series
Specifications
| Parameter | Specification |
|---|---|
| Product name | Hotel room smart control panel |
| Installation | 86 mm back box |
| Panel material | Tempered glass touch |
| Main function | Hotel room smart control panel — Combined lighting and scene keys; OEM layout for hotel projects. Tempered glass touch, RS485 bus, pairs with hotel RCU host. |
| Communication method | RS485 bus |
| Status indication | Backlight status |
| Optional finishes | A / B / C / D / E / F / G (see gallery above) |
| Product series | composite switch series |
| Delivery | Bulk project supply |

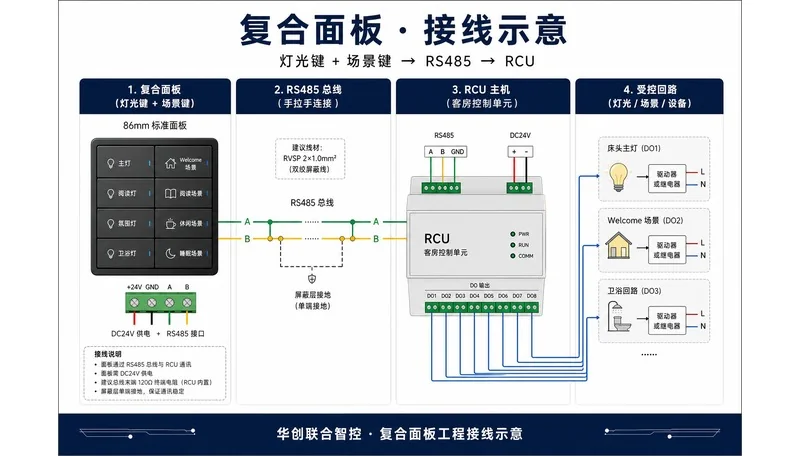

Wiring diagram
Composite panel category wiring reference — terminals and wire gauge per signed drawing set.
Installation notes
- composite panel each button function must be at detailed design phase with circuit schedule, scene schedule confirm ed together
- different composite model type key definitions differ, when ordering noted BOM type No. with functional allocation
- Wire per project drawing; signed projects use factory shipment drawings
- after power-on with RCU commissioning: each button function, backlight indication item-by-item acceptance
Downloads
Full spec sheets, wiring diagrams and certificates are in the download center, or contact sales for project BOM.
Recommended for you
requires composite switch selection and functional allocation? Contact the team for combined function table, project BOM and standard room detailed design reference.
