4-inch hotel touch control panel
Glass touch and scene key panels for hotel guestrooms.

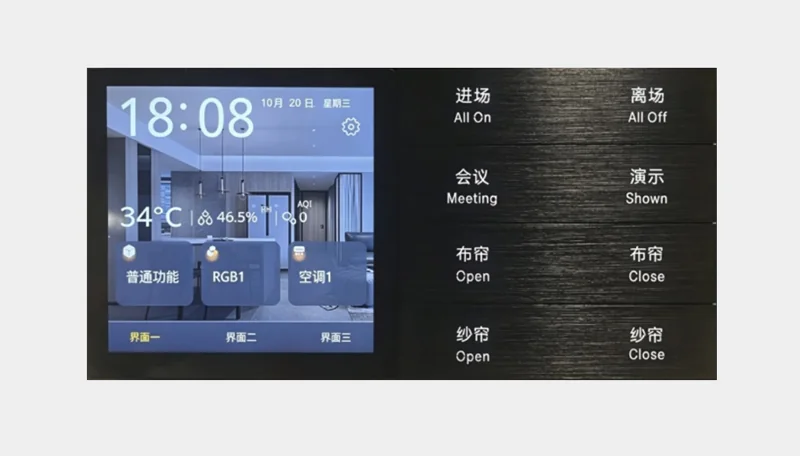

4-inch hotel touch control panel
4-inch hotel touch control panel — 4-inch capacitive touch for lighting, curtain and HVAC on one screen. 4-inch glass touch central panel for lighting, curtain and HVAC; RS485 or IP uplink to RCU with OEM UI options.
- 4-inch capacitive central panel
- Lighting, curtain and HVAC on one UI
- RS485 or IP uplink to RCU
- Upscale guestroom and suite
Touch screen Centralized guestroom control
Communication Ethernet / RS485 → RCU
UI Scene/HVAC/lighting integrated
Installation 86 box / wall flush
Application Upscale guestroom · suite
- Product
- hotel touch control panel
- Series
- LCD
- Features
- 4-inch · touch · RS485
- Interfaces
- RS485 bus · Modbus RTU (model-dependent)
Specifications
| Parameter | Specification |
|---|---|
| Product name | hotel touch control panel |
| Product series | Touch panel |
| Key features | 4-inch · touch · RS485· capacitive touch · centralized scenes · RCU networking |
| Product overview | hotel touch control panel, 4 inch scene with device control. capacitive touch, RS485/network, hotel guestroom scene control. |
| Installation | 86 mm back box / standard wall / LV cabinet (model-dependent) |
| Communication method | RS485 bus · Modbus RTU (model-dependent) |
| Delivery | Bulk project supply · finish and load per BOM |
| Applications | Hotel guestroom · building public areas · bulk projects |
| Engineering sup port | Detailed design docs · project BOM · bulk supply coordination |

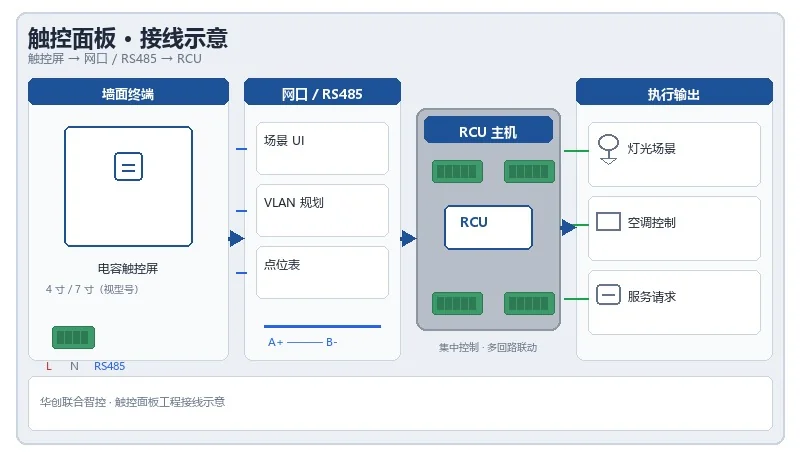

Wiring diagram
Touch panel engineering wiring reference — network/RS485 and RCU networking. Per signed drawing set.
Installation notes
- UI scenes and RCU logic must be confirmed during detailed design
- Plan VLAN/addresses for network and RS485 to avoid conflicts
- Wire per project drawing; signed projects use factory shipment drawings
- After power-on commissioning: scenes, HVAC, lighting and service request acceptance
Downloads
Full datasheets, wiring diagrams and certificates are in the download center, or contact sales for project BOM.
Need Smart control touch screen selection and UI customization? Contact our team for UI artwork, point schedule and project BOM.
