Integrated weak-current
Weak-current topology and integration brief for engineering bids.
- 5 layersSubsystem split
Responsibility stack - RCUGuest control core
PurePoint Smart primary deliverable - InterfaceStandard protocol
Reduce duplicate wiring - GCIPTV/network
Integrator coordination
Guest control core · model entry
RCU is core guest-control deliverable — IPTV/phone/CCTV coordinated by GC; open interface standards.
Tender citation · three-step method
LV GC scope defines five-layer duties first, then guest experience chapter.
PurePoint Smartprimary deliverable RCU+panels+modules; other subsystems note implementer.

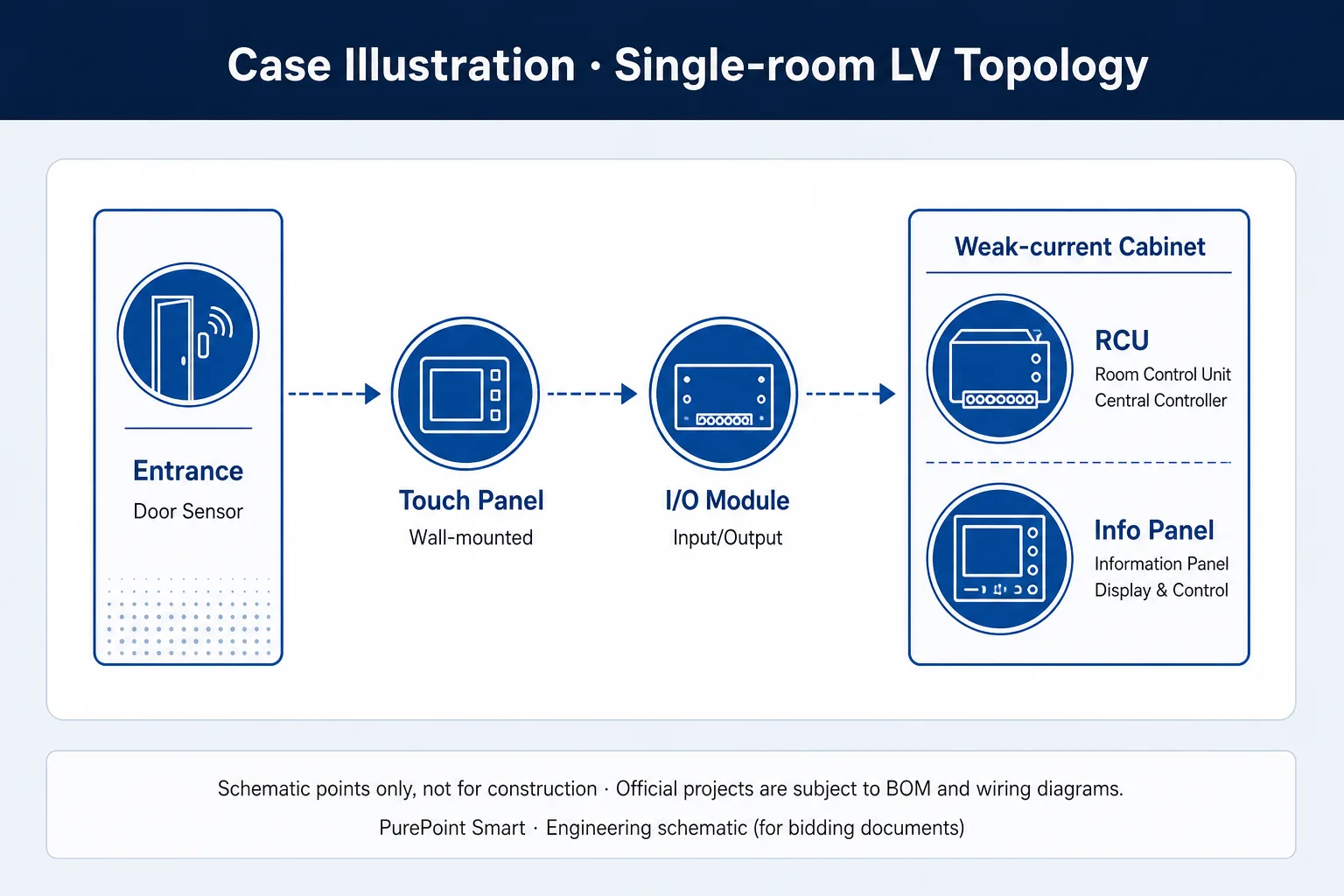

Cite standard room LV topology andFour deployment routes。
* Multi-network install coordinated by GC/integrator; guest control provides standard protocol and terminal defs.
LV layered responsibility stack
Click subsystem for primary deliverable, interface and PurePoint Smart boundary — cite in GC tender "System boundary" chapter.
Interface:HDMI / IP · RS232 optional info-panel key linkage
PurePoint Smart boundary:Info panel keys optional scene linkage; no license or content delivery
Wiring:Separate LV chase from RCU to avoid conduit interference
Interface:AP / POE · separate feed from RCU enclosure
PurePoint Smart boundary:RCU and AP physically isolated; no Wi-Fi auth software provided
Wiring:LV shaft zone labels; GC coordinates penetrations
Interface:PMS API / lock-network gateway · room status drives card power and lock
PurePoint Smart boundary:Dry contact and register docs; not PMS / lock-network software delivery
Commissioning:seeProtocol integration、Contactless timeline
Interface:RS485 / Modbus · star or bus to modules
PurePoint Smart boundary:Host, modules, drawings, terminal defs, scene table version
Reference:Wired per-room wiring table·Standard room master solution
Interface:LV star to RCU · box standard
PurePoint Smart boundary:Panel, card power, door sign, sensor hardware and silkscreen
Acceptance:Key legend + scene table + finish samples (upscale OEM)
LV layered responsibility table · by project type
GC tender cites by new-build, retrofit, chain — specify primary deliverable and interfaces.
| Subsystem | Primary deliverable | Interface | PurePoint Smart boundary |
|---|---|---|---|
| Guest control RCU / panels | PurePoint Smart | RS485 / Modbus | Host, modules, panels, drawings |
| IPTV / TV | LV GC | HDMI / IP | Info panel keys optional linkage |
| Guest room Wi-Fi | Network integrator | AP / POE | RCU and AP separate chase |
| PMS / door lock | Integrator | API / gateway | Dry contact docs, not PMS software |
| Subsystem | Primary deliverable | Interface | PurePoint Smart boundary |
|---|---|---|---|
| Guest control RCU | PurePoint Smart | Wireless/ RS485 retrofit | No wall chase preferred |
| Card power / door sign | PurePoint Smart | box replacement | andPer-room wiring tableAlign |
| IPTV | Keep legacy system | RS232 (optional) | No mandatory license replacement |
| Phone / intercom | LV GC | Doorbell DI to RCU | Terminal definition |
| Subsystem | Primary deliverable | Interface | PurePoint Smart boundary |
|---|---|---|---|
| Guest control BOM | PurePoint Smart | Versioned BOM | seeChain BOM summary |
| Network / IPTV | Group centralized procurement | Standard interface | New property checklist reuse |
| PMS | Group platform | Unified API | RCU register table consistent property-wide |
| Spares | PurePoint Smart + integrator | Cross-property common models | Silkscreen / firmware version lock |
