4096-point RS485 schedule host
4096-point RS485 schedule host — 4096-point public-area and whole-building schedule dispatch. RS485/Modbus RTU or wireless Mesh; manages switch panels and guestroom scenes.
4096-point RS485 schedule host
4096-point RS485 schedule host — 4096-point public-area and whole-building schedule dispatch. RS485/Modbus RTU or wireless Mesh; manages switch panels and guestroom scenes.
- new-build hotel centralized cabling
- multi-property chain replication
- high-circuit-count guest rooms and public areas
- Modbus addresses plannable
- Bus
- 4096-point RS485 schedule host
- Capacity
- pertype No. 80～
- Topology
- star / bus · addresses plannable
- Protocol
- Modbus RTU · BMS integration
Specifications
| Parameter | Specification |
|---|---|

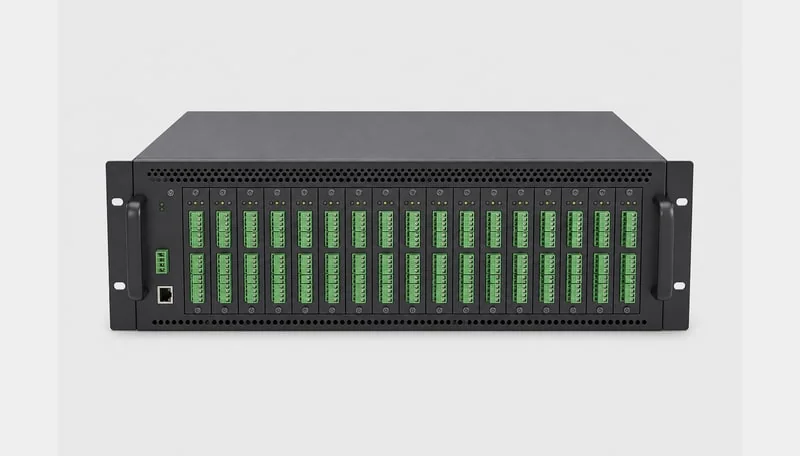

| Product name | 4096-point RS485 schedule host |
| Product series | RS485 busguestroom control host |
| Bus | RS485 |
| Topology | 4096-point RS485 schedule host — 4096-point public-area and whole-building schedule dispatch. RS485/Modbus RTU or wireless Mesh; manages switch panels and guestroom scenes. |
| Capacity | pertype No. 80～ |
| Protocol | Modbus RTU · BMS integration |
| Communication protocol | Modbus RTU · BMS integration |
| Installation | low-voltage cabinet / equipment room / DIN rail(model-dependent) |
| Delivery | bulk project supply · detailed designschedule with construction drawingssync |
Wiring diagram
RS485 bus RCU host engineering wiring reference — bus cascading, terminal addressing, and BMS integration; refer to signed drawing set for terminal details.
Installation notes
- Bus address schedule must be planned with the circuit schedule during detailed design to avoid conflicts
- Long-distance buses require termination resistors and shield grounding per specification
- Wire per project drawing; signed projects use factory shipment drawings
- After power-on, commission with each slave station: Modbus communication and scene logic, item-by-item acceptance
Downloads
For full specifications, wiring topology, address planning, and certification documents, search the download center or contact sales for project-level BOM.
Companion hotel smart switch panels
RCU hosts coordinate guestroom loads with smart switch and scene panels on RS485 or wireless bus.
