Single-channel curtain control module
Relay, DI/DO and expansion modules for RS485 and wireless guestroom buses.
Single-channel curtain control module
Single-channel curtain control module — Curtain open, stop and close with RS485 motor scenes. Curtain open/stop/close scene panel on RS485 motors; spec with smart-curtain motors in guestroom BOM.
- Curtain scene keys
- Open, stop, close
- RS485 motor linkage
- Pairs with curtain motors
RS485 Curtain control module
RS485 bus Modbus RTU · with RCU networking
Installation DIN rail / low-voltage cabinet
Load confirm model selection per project
Application hotel guestroom · building public areas · centralized control
- Product
- Curtain module
- Series
- Curtain
- Features
- RS485· curtain
- Interfaces
- RS485 bus · Modbus RTU (model-dependent)
Specifications
| Parameter | Specification |
|---|---|
| Product name | Curtain module |
| Product series | Curtain control module |
| Key features | RS485· curtain · curtain open/stop/close · / output · RS485 bus · scene linkage |
| Product overview | Curtain module — Curtain open, stop and close with RS485 motor scenes. RS485 bus actuator, DIN-rail mount, pairs with hotel RCU host. |
| Installation | 86 mm back box / standard wall / LV cabinet (model-dependent) |
| Communication method | RS485 bus · Modbus RTU (model-dependent) |
| Delivery | Bulk project supply · finish and load per BOM |
| Applications | Hotel guestroom · building public areas · bulk projects |
| Engineering sup port | Detailed design docs · project BOM · bulk supply coordination |

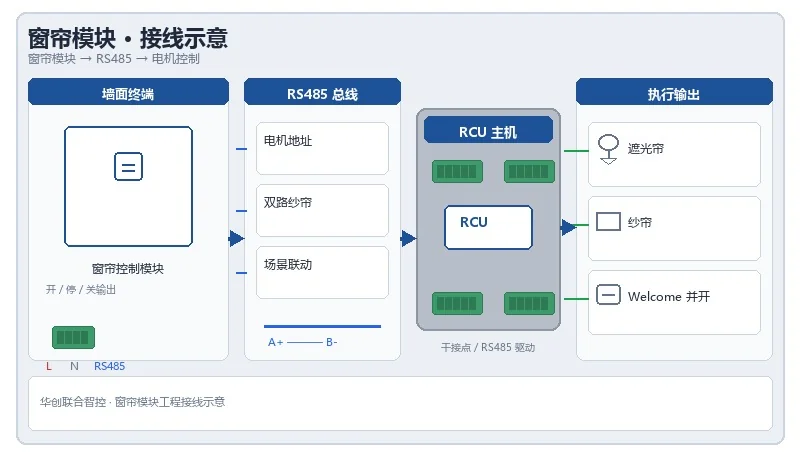

Wiring diagram
curtain module engineering wiring reference — motor open/stop/close with RS485 mapping, specific per signed drawing set.
Installation notes
- module address must be at detailed design phase with RCU circuit schedule, scene schedule planned together
- DIN rail/low-voltage cabinet installation must reserved cooling space, terminals torque per factory specification
- Wire per project drawing; signed projects use factory shipment drawings
- after power-on with RCU commissioning: output actions, bus communication, scene linkage item-by-item acceptance
Downloads
Full datasheets, wiring diagrams and certificates are in the download center, or contact sales for project BOM.
