Hotel smart modules
Bus terminal module
Relay, DI/DO and expansion modules for RS485 and wireless guestroom buses.
Bus terminal module
Bus terminal module — RS485 bus terminal for star-to-bus wiring. RS485 bus terminal module for star-to-bus wiring; cabinet wiring organization and branch pairing in RCU deploy.
- RS485 bus terminal
- Star-to-bus wiring
- Cabinet wiring
- DIN-rail mount

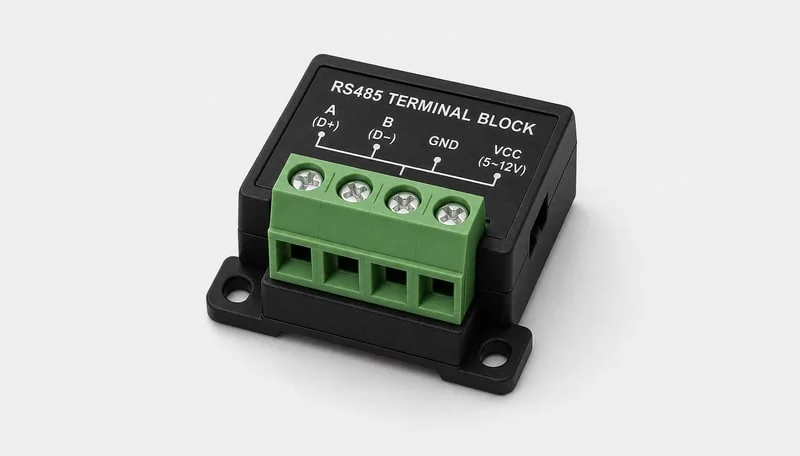

485 RS485 bus terminal block module
RS485 bus Modbus RTU · with RCU networking
Installation DIN rail / low-voltage cabinet
Load confirm model selection per project
Application hotel guestroom · building public areas · centralized control
- Product
- Bus terminal module
- Series
- Terminal
- Features
- RS485· terminals · expansion
- Interfaces
- RS485 bus · Modbus RTU (model-dependent)
Specifications
| Parameter | Specification |
|---|---|
| Product name | Bus terminal module |
| Product series | smart module accessory |
| Key features | RS485· terminals · expansion · bus terminals · centralized power supply · IR blaster |
| Product overview | Bus terminal module — RS485 bus terminal for star-to-bus wiring. RS485 bus actuator, DIN-rail mount, pairs with hotel RCU host. |
| Installation | 86 mm back box / standard wall / LV cabinet (model-dependent) |
| Communication method | RS485 bus · Modbus RTU (model-dependent) |
| Delivery | Bulk project supply · finish and load per BOM |
| Applications | Hotel guestroom · building public areas · bulk projects |
| Engineering sup port | Detailed design docs · project BOM · bulk supply coordination |
Wiring diagram
Accessory module engineering wiring reference — terminals, power supply, IR and auxiliary components. Per signed drawing set.
Installation notes
- module address must be at detailed design phase with RCU circuit schedule, scene schedule planned together
- DIN rail/low-voltage cabinet installation must reserved cooling space, terminals torque per factory specification
- Wire per project drawing; signed projects use factory shipment drawings
- after power-on with RCU commissioning: output actions, bus communication, scene linkage item-by-item acceptance
Downloads
Full datasheets, wiring diagrams and certificates are in the download center, or contact sales for project BOM.
Recommended for you
Need RS485 bus terminal block module accessory selection? contact the team to obtain accessory BOM with construction package BOM.
