Hotel smart modules
KNX gateway module
Relay, DI/DO and expansion modules for RS485 and wireless guestroom buses.
KNX gateway module

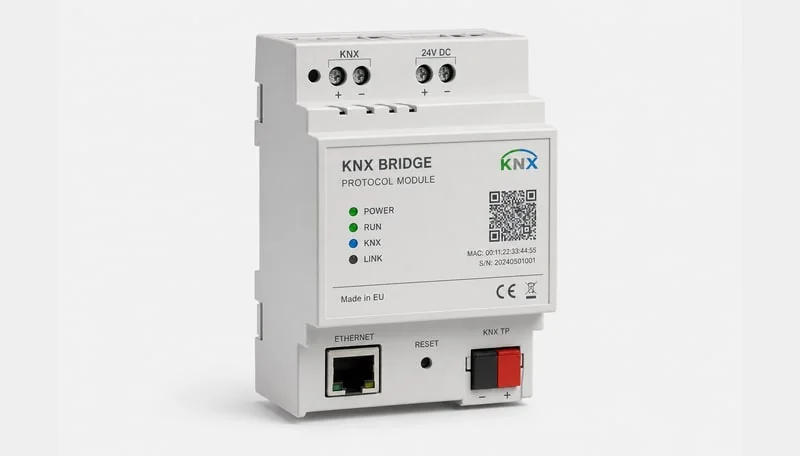

KNX gateway module — KNX gateway module linking building and guestroom systems. KNX gateway linking building and guestroom systems; protocol node for European-standard projects.
- KNX gateway module
- Building system link
- European-standard projects
- Protocol integration
KNX KNX/EIB bridge module
RS485 bus Modbus RTU · with RCU networking
Installation DIN rail / low-voltage cabinet
Load confirm model selection per project
Application hotel guestroom · building public areas · centralized control
- Product
- KNX gateway module
- Series
- KNX
- Features
- KNX · bridge · RS485
- Interfaces
- RS485 bus · Modbus RTU (model-dependent)
Specifications
| Parameter | Specification |
|---|---|
| Product name | KNX gateway module |
| Product series | Protocol gateway module |
| Key features | KNX · bridge · RS485· Modbus/KNX/BACnet · protocol bridge · RS485 bus |
| Product overview | KNX gateway module — KNX gateway module linking building and guestroom systems. RS485 bus actuator, DIN-rail mount, pairs with hotel RCU host. |
| Installation | 86 mm back box / standard wall / LV cabinet (model-dependent) |
| Communication method | RS485 bus · Modbus RTU (model-dependent) |
| Delivery | Bulk project supply · finish and load per BOM |
| Applications | Hotel guestroom · building public areas · bulk projects |
| Engineering sup port | Detailed design docs · project BOM · bulk supply coordination |
Wiring diagram
Protocol gateway module engineering wiring reference — Modbus/KNX/BACnet to RS485 conversion. Per signed drawing set.
Installation notes
- module address must be at detailed design phase with RCU circuit schedule, scene schedule planned together
- DIN rail/low-voltage cabinet installation must reserved cooling space, terminals torque per factory specification
- Wire per project drawing; signed projects use factory shipment drawings
- after power-on with RCU commissioning: output actions, bus communication, scene linkage item-by-item acceptance
- Protocol mapping table must sync with BMS point schedule during detailed design
Downloads
Full datasheets, wiring diagrams and certificates are in the download center, or contact sales for project BOM.
Recommended for you
Need KNX/EIB bridge module selection and protocol mapping? Contact the team for protocol manual, point mapping table and integration reference.
