Guestroom fan speed control panel
Guestroom fan speed control panel — Three-speed fan control for guestroom HVAC with RCU scenes. Three-speed fan control panel for guestroom HVAC with RCU scenes; often specified beside thermostat panels.
- Three-speed fan control
- Guestroom HVAC
- RCU scene linkage
- Wall pair with thermostat
86 mm back box Standard wall mount, compatible with project back boxes
RS485 bus Network with RCU host and fan module
Glass touch Tempered glass panel with backlight status indication
3 finish options A / B / C
three-speed speed control Low/medium/high three fan speeds; RCU linkage
- Installation
- Hotel smart switch panel
- Panel
- Tempered glass touch
- Communication
- RS485 bus
- Function
- three-speed speed control
- Indication
- Backlight status
- Finish
- 3 options
- Delivery
- Bulk project supply
- Series
- Fan speed control series
Specifications
| Parameter | Specification |
|---|---|
| Product name | Hotel smart switch panel |
| Installation | 86 mm back box |
| Panel material | Tempered glass touch |
| Main function | Hotel smart switch panel — Three-speed fan control for guestroom HVAC with RCU scenes. Tempered glass touch, RS485 bus, pairs with hotel RCU host. |
| Communication method | RS485 bus |
| Status indication | Backlight status |
| Optional finishes | A / B / C (see gallery above) |
| Product series | Fan speed control series |
| Delivery | Bulk project supply |

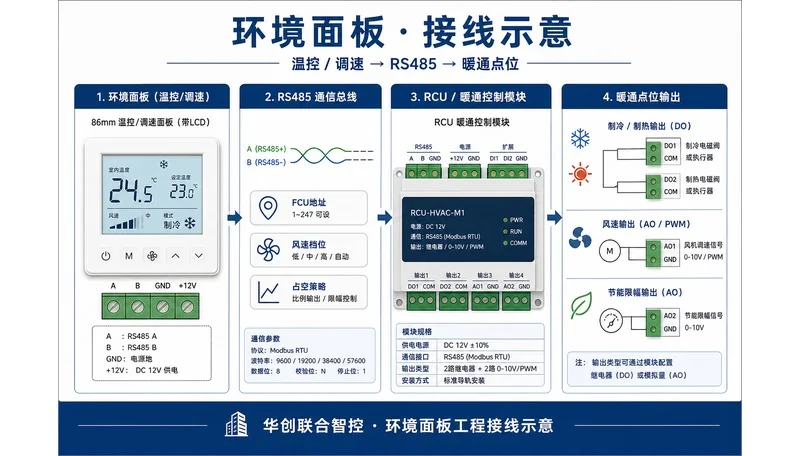

Wiring diagram
environment control panel category general-purpose wiring reference — specific terminals wire gauge per signed version wiring atlas as reference.
Installation notes
- temperature control, speed control panel must with FCU/VRF gateway orHVAC module address schedule planned together
- Setpoint and fan speed levels must be mapped to HVAC protocol in RCU program
- Wire per project drawing; signed projects use factory shipment drawings
- Commission with RCU and HVAC after power-on: setpoint, feedback, backlight — item-by-item acceptance
Downloads
Full spec sheets, wiring diagrams and certificates are in the download center, or contact sales for project BOM.
