RCU Controllers
96-ch integrated RCU host

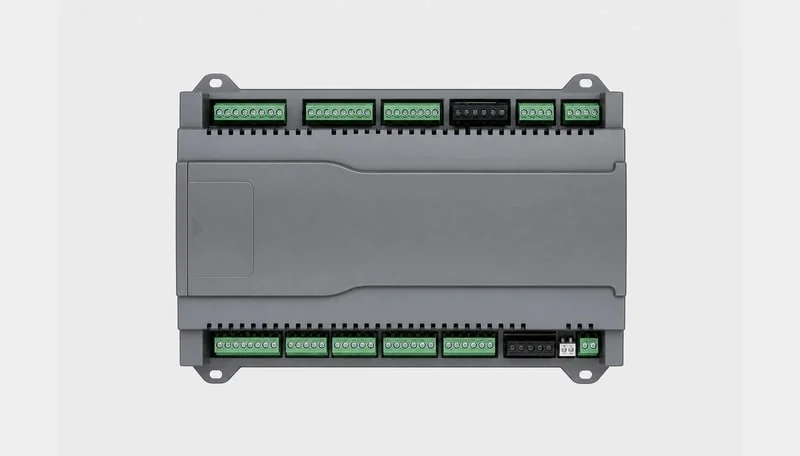

96-ch integrated RCU host — 96-circuit integrated host for standard-room batches. RS485/Modbus RTU or wireless Mesh; manages switch panels and guestroom scenes.
96-ch integrated RCU host
96-ch integrated RCU host — 96-circuit integrated host for standard-room batches. RS485/Modbus RTU or wireless Mesh; manages switch panels and guestroom scenes.
- 96-circuit capacity selection
- standard room turnkey delivery
- small-to-mid-scale hotels
- rapid replicated installation
hotel RCU guestroom control host centralized management of guestroom and public-area circuits
RS485 Modbus RTU · module networking
Installation low-voltage cabinet / equipment room centralized
Delivery single-room or floor-centralized
Application standard room · economy · small-scale circuits
- Circuit capacity
- 96-ch integrated RCU host
- Form factor
- integrated guestroom control host
- Circuits
- pertype No. 64～
- Wiring
- star topology to terminal modules
- Delivery
- single-room or floor-centralized
Specifications
| Parameter | Specification |
|---|---|
| Product name | 96-ch integrated RCU host |
| Product series | integrated guestroom control host |
| Circuit capacity | hotel RCU guestroom control host |
| Wiring | 96-ch integrated RCU host — 96-circuit integrated host for standard-room batches. RS485/Modbus RTU or wireless Mesh; manages switch panels and guestroom scenes. |
| Form factor | integrated guestroom control host |
| Circuit notes | pertype No. 64～ |
| Delivery | single-room or floor-centralized |
| Communication protocol | Modbus RTU · RS485 bus(model-dependent) |
| Installation | low-voltage cabinet / equipment room / DIN rail(model-dependent) |
| Delivery | single-room or floor-centralized |
Wiring diagram
Integrated RCU host engineering wiring reference — relay outputs and RS485 bus to terminal modules; refer to signed drawing set for terminal numbers and wire gauge.
Installation notes
- During detailed design, deliver circuit schedule, address schedule, and scene schedule together with construction drawings
- Integrated hosts are recommended for centralized installation in low-voltage cabinets or equipment rooms with space reserved for cooling and maintenance
- Wire per project drawing; signed projects use factory shipment drawings
- After power-on, commission with terminal modules and panels: card power, lighting, and scenes, item-by-item acceptance
Downloads
For full specifications, wiring topology, address planning, and certification documents, search the download center or contact sales for project-level BOM.
Product datasheet PDF Includes integrated guestroom control host dimensions, electrical and installation parameters wiring topology drawing set integrated guestroom control host · wiring topology reference circuit address schedule template integrated host point mapping reference Contact for selection get address schedule template and project BOM
Companion hotel smart switch panels
RCU hosts coordinate guestroom loads with smart switch and scene panels on RS485 or wireless bus.
Recommended for you
Need integrated guestroom control host selection and circuit planning? Contact our team for circuit schedule templates, address planning, and standard room detailed design reference.
