Relay module

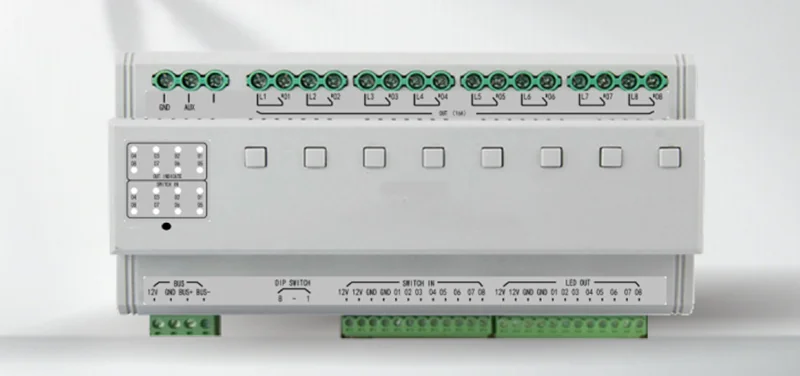

Relay module — Relay outputs for lighting loads; scene dispatch from RCU host. 8-channel relay module for lighting and load zones; DIN-rail mount in the RCU low-voltage cabinet.
- 8-channel relay outputs
- Lighting and load zones
- RCU cabinet module
- RS485 bus actuator
RS485 relay module
RS485 bus Modbus RTU · with RCU networking
Installation DIN rail / low-voltage cabinet
Load confirm model selection per project
Application hotel guestroom · building public areas · centralized control
- Product
- Relay module
- Series
- Relay
- Features
- RS485· relay
- Interfaces
- RS485 bus · Modbus RTU (model-dependent)
Specifications
| Parameter | Specification |
|---|---|
| Product name | Relay module |
| Product series | relay / IO module |
| Key features | RS485· relay · multi-circuit relay output · RS485 bus · DIN rail installation · with RCU point mapping |
| Product overview | Relay module — Relay outputs for lighting loads; scene dispatch from RCU host. RS485 bus actuator, DIN-rail mount, pairs with hotel RCU host. |
| Installation | 86 mm back box / standard wall / LV cabinet (model-dependent) |
| Communication method | RS485 bus · Modbus RTU (model-dependent) |
| Delivery | Bulk project supply · finish and load per BOM |
| Applications | Hotel guestroom · building public areas · bulk projects |
| Engineering sup port | Detailed design docs · project BOM · bulk supply coordination |
Wiring diagram

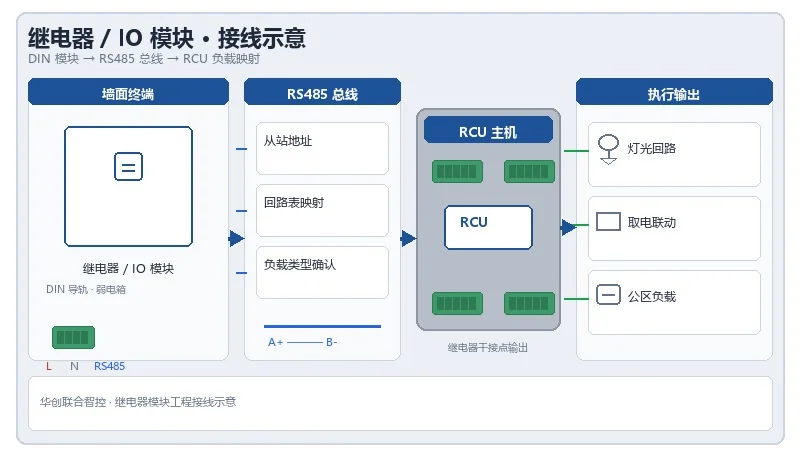

Relay module engineering wiring reference — RS485 bus, mains output terminals and load matching. Per signed drawing set.
Installation notes
- module address must be at detailed design phase with RCU circuit schedule, scene schedule planned together
- DIN rail/low-voltage cabinet installation must reserved cooling space, terminals torque per factory specification
- Wire per project drawing; signed projects use factory shipment drawings
- after power-on with RCU commissioning: output actions, bus communication, scene linkage item-by-item acceptance
Downloads
Full datasheets, wiring diagrams and certificates are in the download center, or contact sales for project BOM.
Recommended for you
requiresrelay module selection andloadmatching？ Contact the team for load type confirmation, circuit schedule and module address planning.
